Filtek (India) Pvt. Ltd.

DFU Systems

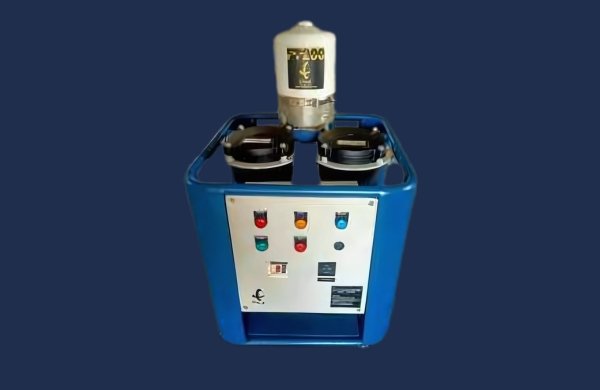

Filtek introduces the DFU200H Dual Filtration Portable Skid, a high-performance oil filtration unit designed for superior contaminant and moisture removal. Equipped with an FT200 Centrifuge and depth filter system, this portable skid ensures enhanced oil purification, extended equipment life, and reduced maintenance costs.
Shape 2
DFU Systems

Technical Specifications :

Feature DFU-200PD DFU-60 Twin Filter Skid
Configuration FT200 Centrifuge + 5-micron Depth Filter Dual Spin-On Cartridge (5-1 micron) + FT60 Centrifuge
Flow Rate 1200 LPH 1800 LPH
Dirt Retention 1800 gms per cartridge 1800 gms per cartridge
Water Absorption 800 ml per cartridge 800 ml per cartridge
Pump & Motor 1.5 HP, 3-Phase 415 VAC, 30 LPM Gear Pump 1 HP, 220 VAC, 20 LPM
Rotor Speed 6000 RPM @ 7 BAR N/A
Dimensions (LBH) 500 x 500 x 800 mm 500 x 500 x 460 mm
Weight 135 kg 50 kg

Get in Touch

Looking for a high-performance oil filtration skid? Contact us today for a consultation or a quote!
