Centrifugal Oil Filtration

Centrifugal Oil Filtration

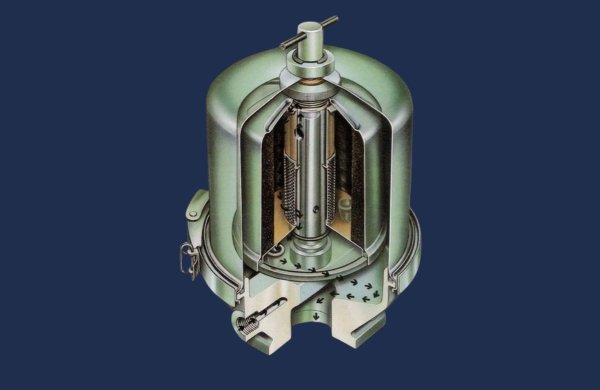

Oil from a pressure point on an engine is fed through the side inlet of the Centrifuge. When the oil pressure exceeds cutoff valve rating, the spring loaded plunger is pushed back and the oil enters the rotor assembly through the internal drilling of the central spindle. The rotor assembly gets pressurized and the only exit point for the oil are the two tangentially opposed nozzles at the base. The rotor assembly has two bush bearings, one at the top and one at the bottom and spins freely around the spindle. The action of oil exiting through the nozzles gives it a reverse direction spin. The rotor RPM is directly proportional to the inlet pressure. The oil is returned back under gravity through the central hole at the base of the centrifuge. At 6 BAR pressure the RPM generated for model FM060 is 6000 which generates centrifugal force 2000 times that of gravity. Each particle heavier than oil is subjected to tremendous centrifugal force and gets compacted onto the inner rotor wall. At pre-determined intervals the rotor assembly is cleaned with the help of a wooden spatula.

The centrifuge has no consumable parts and is capable of removing sub micron particles from the oil. Ensure that the minimum operating pressure is at least 3 BAR and does not exceed 7 BAR. Optimum results are achieved at 6 BAR pressure.

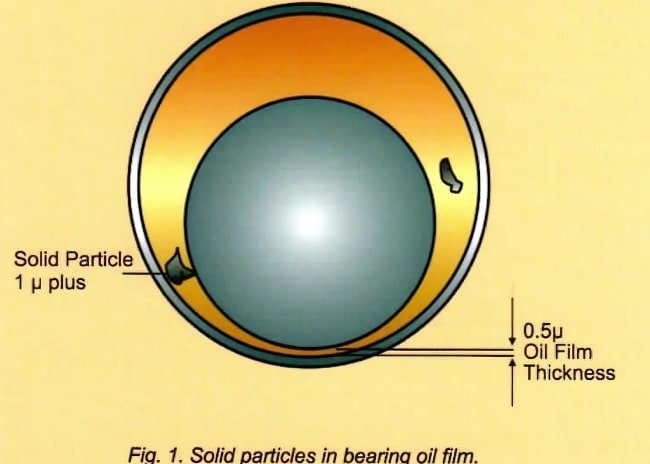

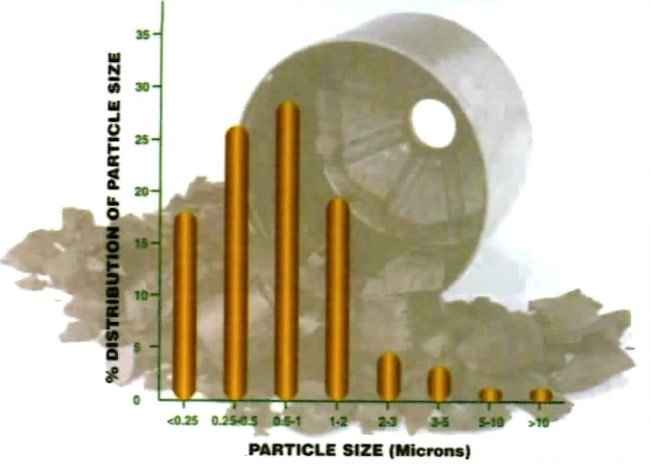

Analysis of contaminant collected in the shows that maximum number of particles (over 90%) are in the range between 0.25 u and 2 p. These particles are not captured by the full flow cartridge filters and cause maximum wear and tear to the friction parts of engine and equipment, such as bearings piston rings, liners where oil film thickness is in the range of 0.5 u to 1 p. Filtek Centrifuges can captures particles down to 0.3 p.

Centrifuge FT 020
Shape 2

CENTRIFUGE FT 020

Suitable for oil system capacity 8 to 15 litres rotor dirt holding capacity is 0.20 litres typical RPM from 4 – 7 bars is 3.5 – 4.5 LPM Net Weighy of the unit is 1.4 Kg

CENTRIFUGE FT 025

Suitable for oil system capacity 15 to 25 litres rotor dirt holding capacity is 0.25 litres typical RPM from 4 – 7 bars is from 5000 – 7300 typical flow rate from 4 – 7 bar is 3.5 – 4.5 LPM Net Weight of the Unit is 1.4 Kg

Shape 2
CENTRIFUGE FT 025

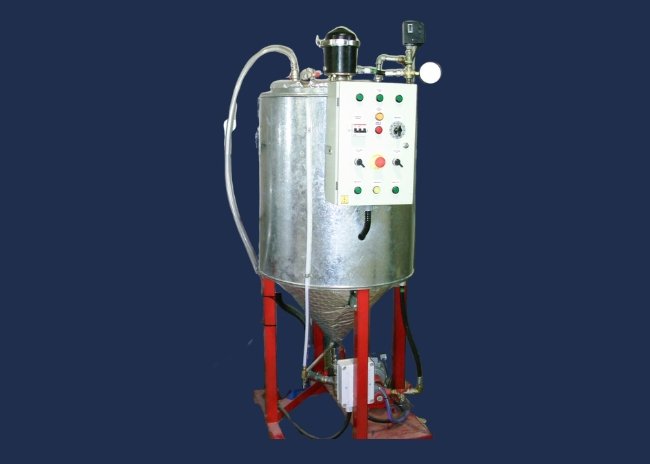

CENTRIFUGE FT 060
Shape 2

CENTRIFUGE FT 060

Suitable for oil system capacity 30 to 90 litres rotor dirt holding capacity is 0.6 litres typical RPM from 4 – 7 bars is from 4800 – 7000 typical flow rate from 4 – 7 bar is 7.5 – 10.5 LPM Net Weight of the Unit is 3 Kg

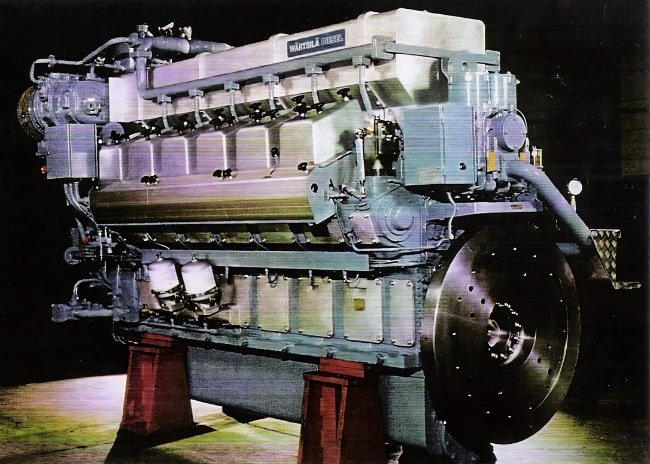

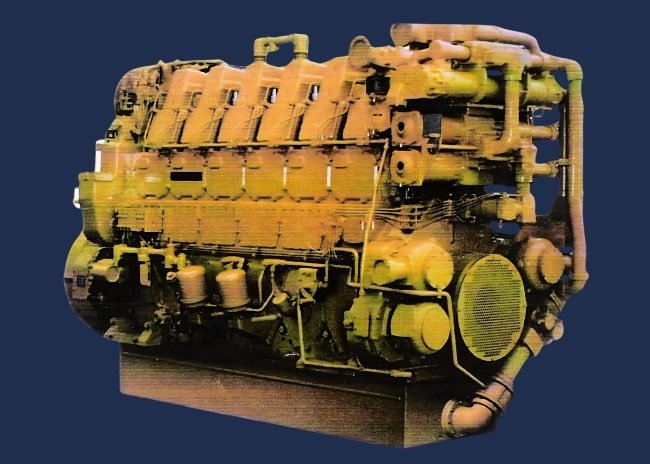

CENTRIFUGE FT 0200

Suitable for oil system capacity 90 to 400 litres rotor dirt holding capacity is 2 litres typical RPM from 4 – 7 bars is from 3000 – 4500 typical flow rate from 4 – 7 bar is 13 – 20 LPM Net Weight of the Unit is 9.5 Kg

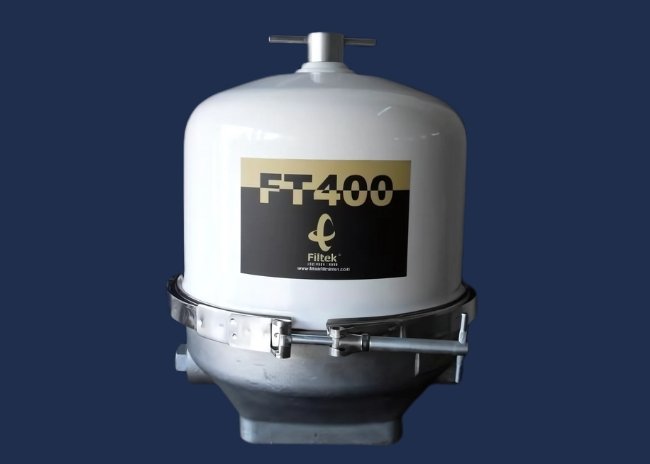

Centrifuge FT 0400
Shape 2

CENTRIFUGE FT 0400

Suitable for oil system capacity 400 to 1000 litres rotor dirt holding capacity is 4 litres typical RPM from 4 – 7 bars is from 3000 – 3800 typical flow rate from 4 – 7 bar is 32 – 50 LPM Net Weight of the Unit is 22 Kg

CENTRIFUGE FT 0600

Suitable for oil system capacity 1000 to 3500 litres rotor dirt holding capacity is 6 litres typical RPM from 4 – 7 bars is from 3000 – 3800 typical flow rate from 4 – 7 bar is 52 – 75 LPM Net Weight of the Unit is 22 Kg
